SpatialDataFrame

The SpatialDataPoint and -Shape classes represent elements from a SpatialData's points/ and shapes/ layers, respectively. In both cases, these are represented as a duckspatial_df (data slot), and associated with .zattrs represented as SpatialDataAttrs (meta slot); a list of metadata stores other arbitrary info.

Currently defined methods (here, x is an SpatialDataFrame):

• data/meta(x) access underlying data/.zattrs

• geom_type(x) get the shape's type (e.g., POLYGON)

• names(x) returns the underlying table's column names

• dim(x) returns the dimensions of data(x)

• `$`,`[[` directly access columns of data(x)

• filter,select to subset rows/columns à la dplyr

• as.data.frame to coerce x to a data.frame

Usage

SpatialDataPoint(
  data = NULL,
  meta = SpatialDataAttrs(type = "frame"),
  metadata = list(),
  ik = NULL,
  fk = NULL,
  ...
)

SpatialDataShape(
  data = NULL,
  meta = SpatialDataAttrs(type = "frame"),
  metadata = list(),
  ...
)

# S4 method for class 'SpatialDataFrame'
length(x)

# S4 method for class 'SpatialDataFrame'
dim(x)

# S4 method for class 'SpatialDataFrame'
names(x)

# S4 method for class 'SpatialDataFrame'
as.data.frame(x)

# S4 method for class 'SpatialDataShape'
geom_type(x)

# S3 method for class 'SpatialDataFrame'
pull(.data, ...)

# S3 method for class 'SpatialDataFrame'
select(.data, ...)

# S3 method for class 'SpatialDataFrame'
mutate(.data, ...)

# S3 method for class 'SpatialDataFrame'
filter(.data, ...)

# S4 method for class 'SpatialDataFrame,ANY,ANY'
x[[i, j, ...]]

# S4 method for class 'SpatialDataPoint'
x$name

# S3 method for class 'SpatialDataShape'
.DollarNames(x, pattern = "")

# S4 method for class 'SpatialDataShape'
x$name

# S4 method for class 'SpatialDataFrame,ANY,ANY,ANY'
x[i, j, ..., drop = TRUE]

Arguments

data

duckspatial_df for on-disk representation, or a data.frame to be converted.

meta

SpatialDataAttrs

metadata

optional list of arbitrary content describing the overall object.

ik, fk

character string specifying "instance_/feature_key" of the spatialdata_attrs; used to match observations/features.

...

optional arguments passed to and from other methods.

x, .data

SpatialDataFrame

i, j

indices for subsetting (see ?base::Extract).

name

character string for extraction (see ?base::`$`).

drop, pattern

ignored.

Value

SpatialDataFrame

Examples

zs <- file.path("extdata", "blobs.zarr")
zs <- system.file(zs, package="SpatialData")

# points
pa <- list.dirs(
  file.path(zs, "points"),
  recursive=FALSE, full.names=TRUE)
(x <- readPoint(pa))
#> class: SpatialDataPoint
#> count: 200
#> data(4): genes instance_id __null_dask_index__ geometry

y <- filter(x,
  genes == "gene_b",
  instance_id == 7)
head(as.data.frame(y))
#>    genes instance_id __null_dask_index__      geometry
#> 1 gene_b           7                   1 POINT (41 28)
#> 2 gene_b           7                  70 POINT (61 14)
#> 3 gene_b           7                  75 POINT (54 18)
#> 4 gene_b           7                  83 POINT (20 11)
#> 5 gene_b           7                  92 POINT (31 28)
#> 6 gene_b           7                 111 POINT (44 13)

# shapes
pa <- list.dirs(
  file.path(zs, "shapes"),
  recursive=FALSE, full.names=TRUE)

# circles
(x <- readShape(pa[1]))
#> class: SpatialDataShape
#> count: 5
#> data(2): geometry radius
length(x)
#> [1] 5
x$radius
#> [1] 6 6 6 6 6

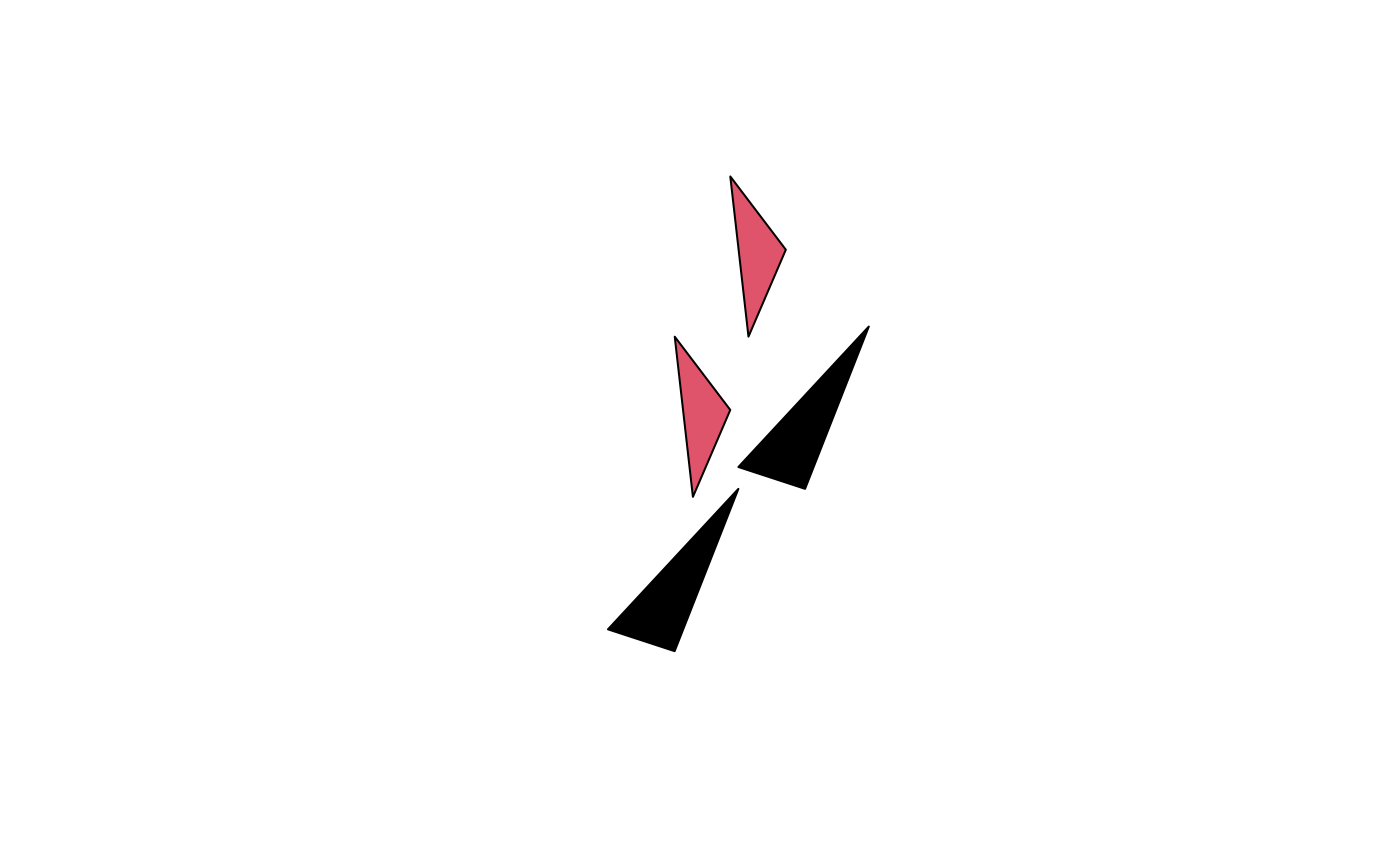

# polygons
(y <- readShape(pa[2]))
#> class: SpatialDataShape
#> count: 2
#> data(1): geometry
df <- as.data.frame(y)
plot(df, col=seq(nrow(df)))

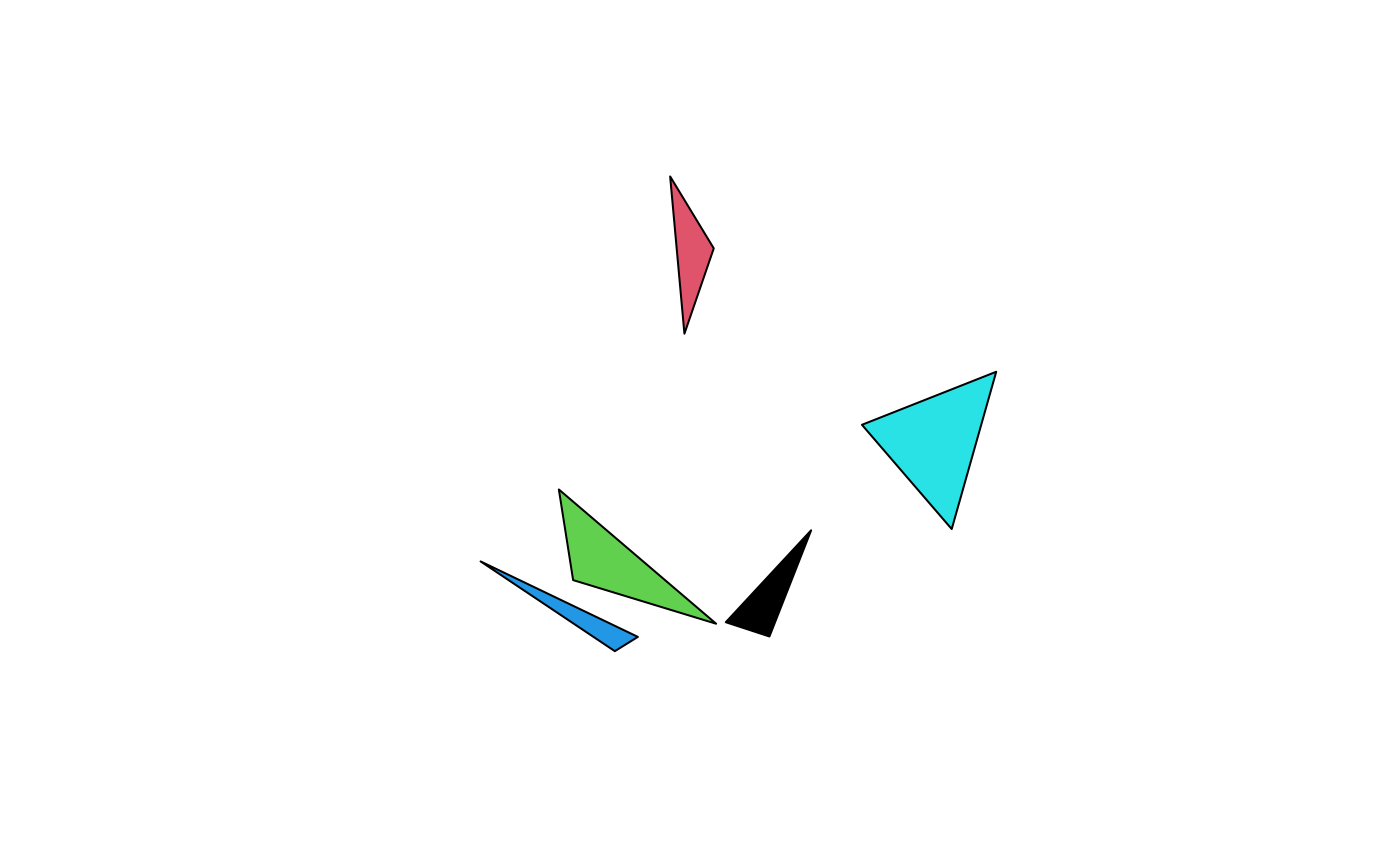

# multi-polygons
(z <- readShape(pa[3]))
#> class: SpatialDataShape
#> count: 5
#> data(1): geometry
df <- as.data.frame(z)
plot(df, col=seq(nrow(df)))
